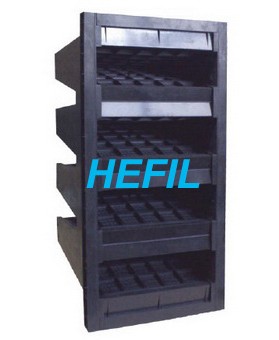

V-bank Activated Charcoal Filter
===Features===◆Columnar activated charcoal particles with a special chemical
formula treatment
◆High adsorption capacity, light weight, easy installation
===Application===
◆Exclusively designed for central air conditioning and central
ventilation system, eliminate the odor (smell) and harmful gases in air
◆A variety of special activated charcoal materials can be provided
according to the actual needs, such as elimination of acid gas, alkaline
gas, formaldehyde, mercury vapor as well as radioactive gases
- ===Common specifications===
| Model | Dimensions | Structural Style | Charcoal Content | Filter Weight | Pressure Drop @ Air Flow |
| W×H×D (mm) | |||||
| HACH2412-4V | 592×287×292 | 4V ABS Frame Header 25mm | 4.5~5.0 kg | 8.0~8.5 kg | 230Pa @1800m3/h |
HEFIL makes various other models of HACH filter not listed the above table. Please consult with us if you need.
