Products

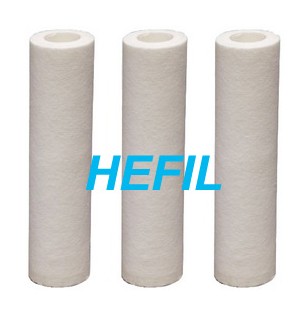

    HCMS meltblown filter

    === Performance characteristics ===

    Polypropylene as raw materials, continuous polypropylene meltblown process long fiber wound on the
    Second, the high filtration precision, flow, uniform structure, pollutant carrying capacity, long life
    Third, there is a good chemical compatibility, without any additives, fiber is not easy to fall off
    Fourth, widely used, cheap

    === Should use ===

    The HCMS meltblown filter pre-filter for a variety of pure water systems, security filters, food, drinks, drinking water filtration, solvent, acid, alkali filters, boilers, water filtration, oil filter

    ===Common specifications===

===主要技術(shù)參數(shù)===

過濾精度

0.5μm, 1μm, 3μm, 5μm, 10μm, 20μm

水流量-壓力差特性 (10"濾芯)

濾芯長度

10", 20", 30", 40"

濾芯外徑

Φ65mm

濾芯內(nèi)徑

Φ28mm

最高工作溫度

60oC (壓差0.12MPa時(shí))

最高工作壓力

1.6MPa@25oC

正向耐壓差

0.4MPa@25oC

反向耐壓差

0.1MPa@25oC

接口型式

平面壓入式 (可加接其他接口)

可加端蓋材料

聚丙烯

A case of specifications, structural change, the latest data provided by the Company shall prevail

Two companies to accept the order of the non-sheet specifications of filter products
