Products

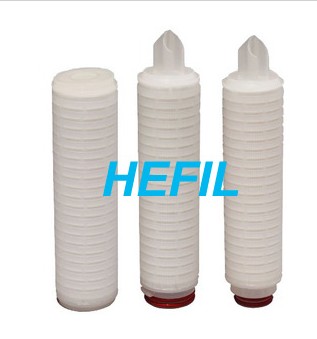

    HCNL nylon microporous membrane folded filter

    === Performance characteristics ===
    ◆ nylon 6 microporous membrane and imported non-woven or mesh support layer folded
    ◆ the outer tube of the filter, the core columns, end caps are polypropylene, heat welding technology to seal molding, no adhesive, non-polluting, non-fiber shedding
    ◆ hydrophilic membrane, pore size distribution, filtering accuracy, the flux
    The chemical compatibility, and wide applicability
    ◆ the performance meets the requirements of the FDA
    ◆ Each filter integrity testing, and by the high purity water rinse


    === Application ===
    ◆ pharmaceutical industry a variety of liquid filtration, filtration of drinking water, beverages, wines and spirits in the food industry, chemical industry a variety of solvent filtration, high purity water filtration for the electronics industry

    ===Common specifications===

===主要技術參數===

過濾精度

0.1μm, 0.22μm, 0.45μm, 0.65μm

水流量-壓力差特性 (10"濾芯)

濾芯長度

10", 20", 30", 40"

濾芯直徑

Φ69mm

過濾面積/10"長度

0.6m2

最高工作溫度

60oC (壓差0.12MPa)

最高工作壓力

1.6MPa@25oC

正向耐壓差

0.4MPa@25oC

反向耐壓差

0.3MPa@25oC

蒸汽滅菌

121oC, 每次30min

接口型式

222插入式, 226卡入式, 平面壓入式

O形密封圈材料

硅橡膠

1、若遇規格、結構變更,以本公司提供的最新數據為準

2、本公司接受非表上規格過濾器產品的訂貨。
