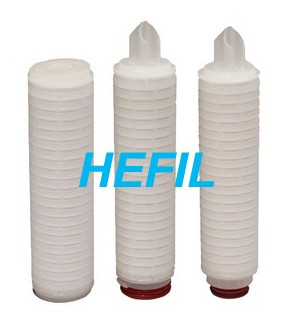

PVDF Membrane Media Filter
=== Performance characteristics ===◆ imports of polyvinylidene fluoride (PVDF) microporous membrane and imported non-woven or mesh support layer folding
◆ filter outside the tube, the core columns, the end caps are enhanced polypropylene material, part sealed by hot welding technology molding, no adhesive
◆ membrane has a hydrophobic, wet or dry conditions can ensure absolute sterilization can be 100% interception of airborne bacteria, phage
◆ has excellent chemical compatibility, oxidation resistance and heat resistance, impact resistance, you can repeat the line steam sterilization
◆ flow, pressure, long life
◆ Each filter integrity testing
=== Should use ===
◆ compressed air, biological reactors, storage tanks, a mixing tank, intake and exhaust sterilization filter, pharmaceutical, biotechnology, electronics and other industries air sterilization filter
- ===Common specifications===
| 過濾精度 | 0.22μm, 0.45μm | 空氣流量-壓力差特性 (10"濾芯) |
| 濾芯長度 | 5", 10", 20" |
|
| 濾芯直徑 | Φ69mm | |
| 過濾面積/10"長度 | 0.6m2 | |
| 最高工作溫度 | 90oC (壓差0.2MPa時) | |
| 最高工作壓力 | 4.0MPa@25oC | |
| 正向耐壓差 | 0.4MPa@25oC | |
| 反向耐壓差 | 0.3MPa@25oC | |
| 蒸汽滅菌 | 121oC, 每次30min | |
| 接口型式 | 226卡入式 | |
| O形密封圈材料 | 氟橡膠, 硅橡膠 |
1、若遇規格、結構變更，以本公司提供的最新數據為準
2、本公司接受非表上規格過濾器產品的訂貨。
