Products

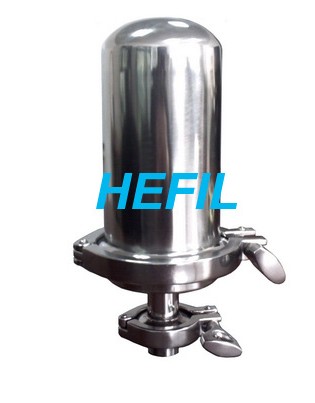

    HFC breathing filter

    === Applicable range ===


    HFC series of breathing filter is applied to installed in various types of tank, pure water tanks, sterile oven loophole to prevent the suction tank level changes and row air, or sterile oven gas emissions suction by the bacteria or dust pollution in the atmosphere.

    ===Common specifications===

===技術特性===

殼體制造材料

不銹鋼304, 316, 316L

濾芯接口型式

226 (卡入式)

管路連接方式

卡箍

提供外接接頭

法蘭

HG20593-1997; PN1.0~1.6MPa

螺紋

英制管螺紋

工作壓力

0.3MPa, 0.8MPa

過濾精度

0.01μm, 0.1μm, 0.22μm, 0.45μm

過濾效率

99.999%

===規格型號和外形尺寸===

額定通氣量(m3/h)

型號

接管

外形尺寸 (mm)

參考重量

公稱通徑DN

管徑d (mm)

連接型式

頸高h

殼體外徑D

總高H

65

HFC-0105F-25

25

Φ32×2.5

法蘭25-1.0

50

Φ102

220

2.2

HFC-0105C-25

卡箍DN25

1.5

HFC-0105S-25

外螺紋G1"

1.2

130

HFC-0110F-40

40

Φ45×2.5

法蘭40-1.0

350

3.7

HFC-0110C-40

卡箍DN40

2.5

HFC-0110S-40

外螺紋G1?"

1.9

400

HFC-0310F-50

50

Φ57×3

法蘭50-1.0

80

Φ200

465

14.3

HFC-0310C-50

卡箍DN50

13.0

HFC-0310S-50

外螺紋G2"

12.3

A case of specifications, structural change, the latest data provided by the Company shall prevail

Two companies to accept the order of the non-sheet specifications of filter products
